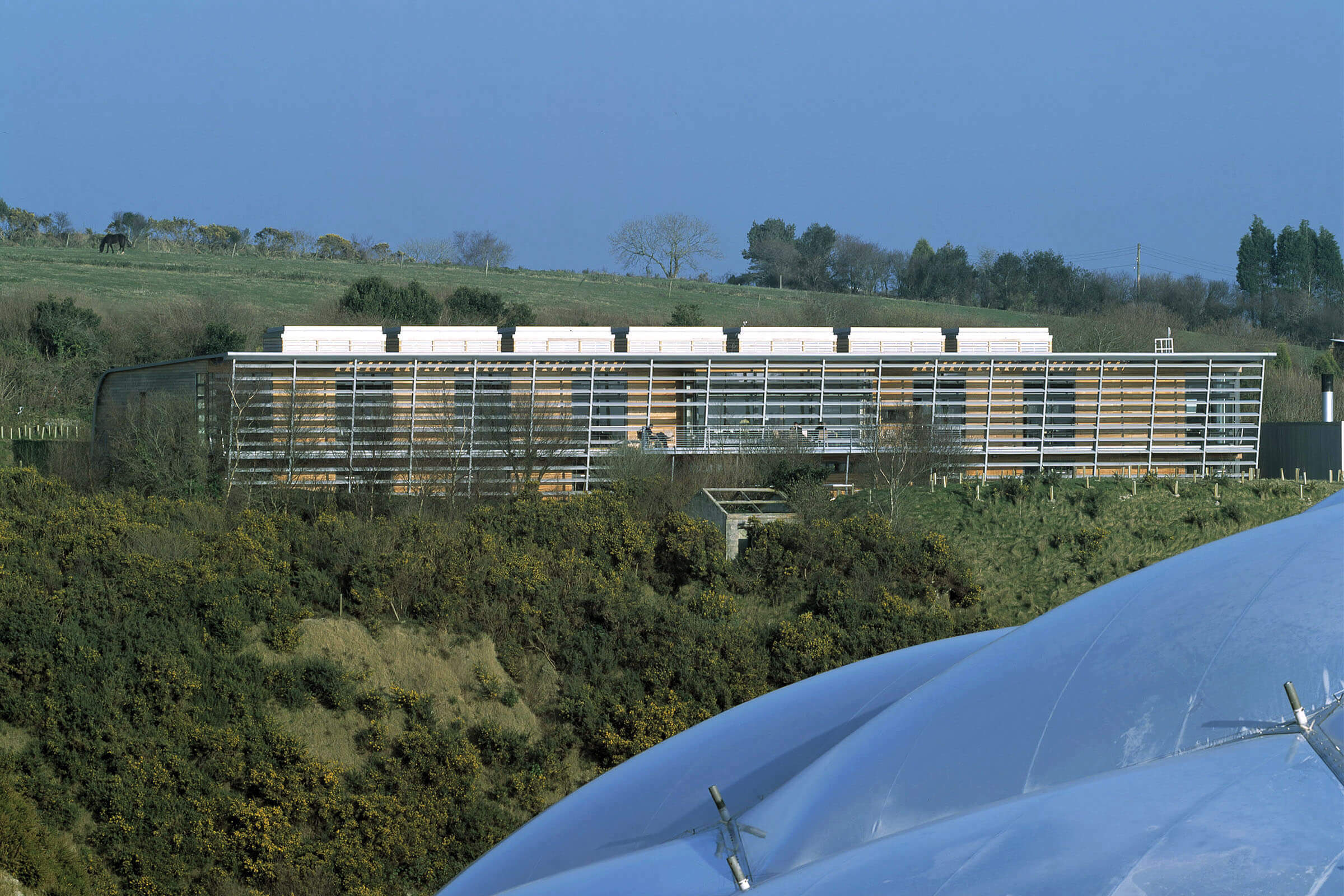

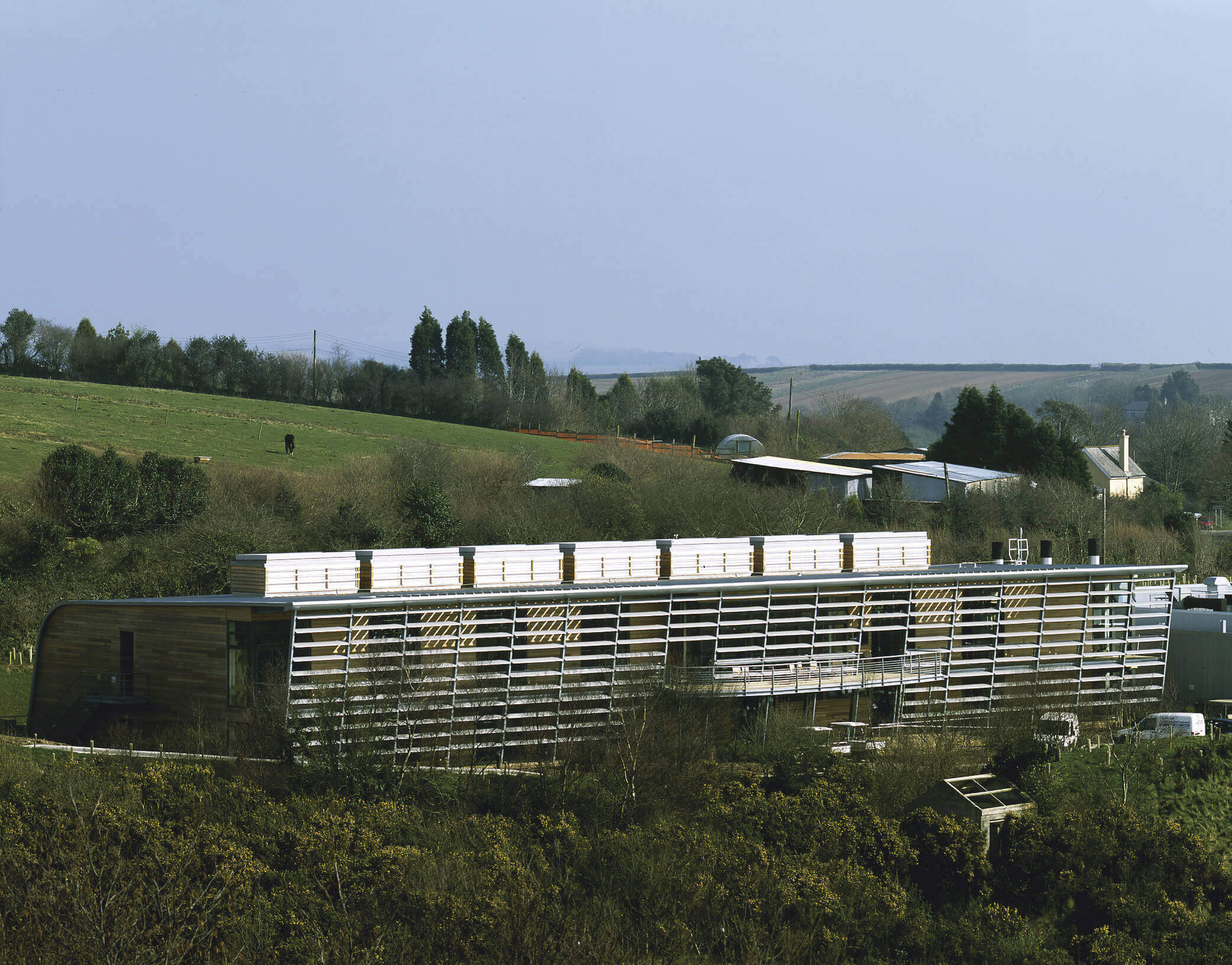

The Foundation Building forms the third phase of The Eden Project, and was designed to accommodate the increased staffing levels of Eden Project employees. It offers a comfortable working environment for the administrative team as well as library facilities.

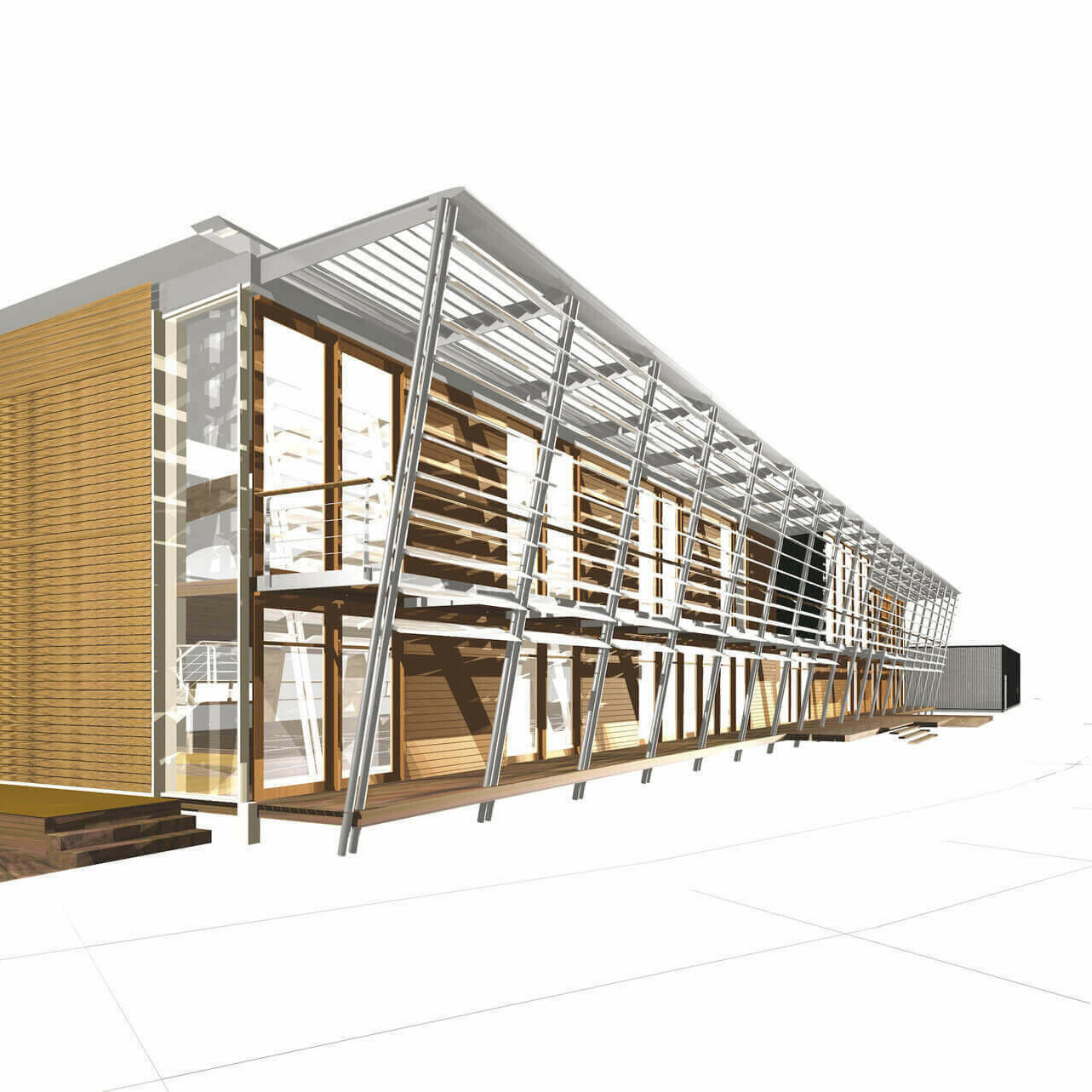

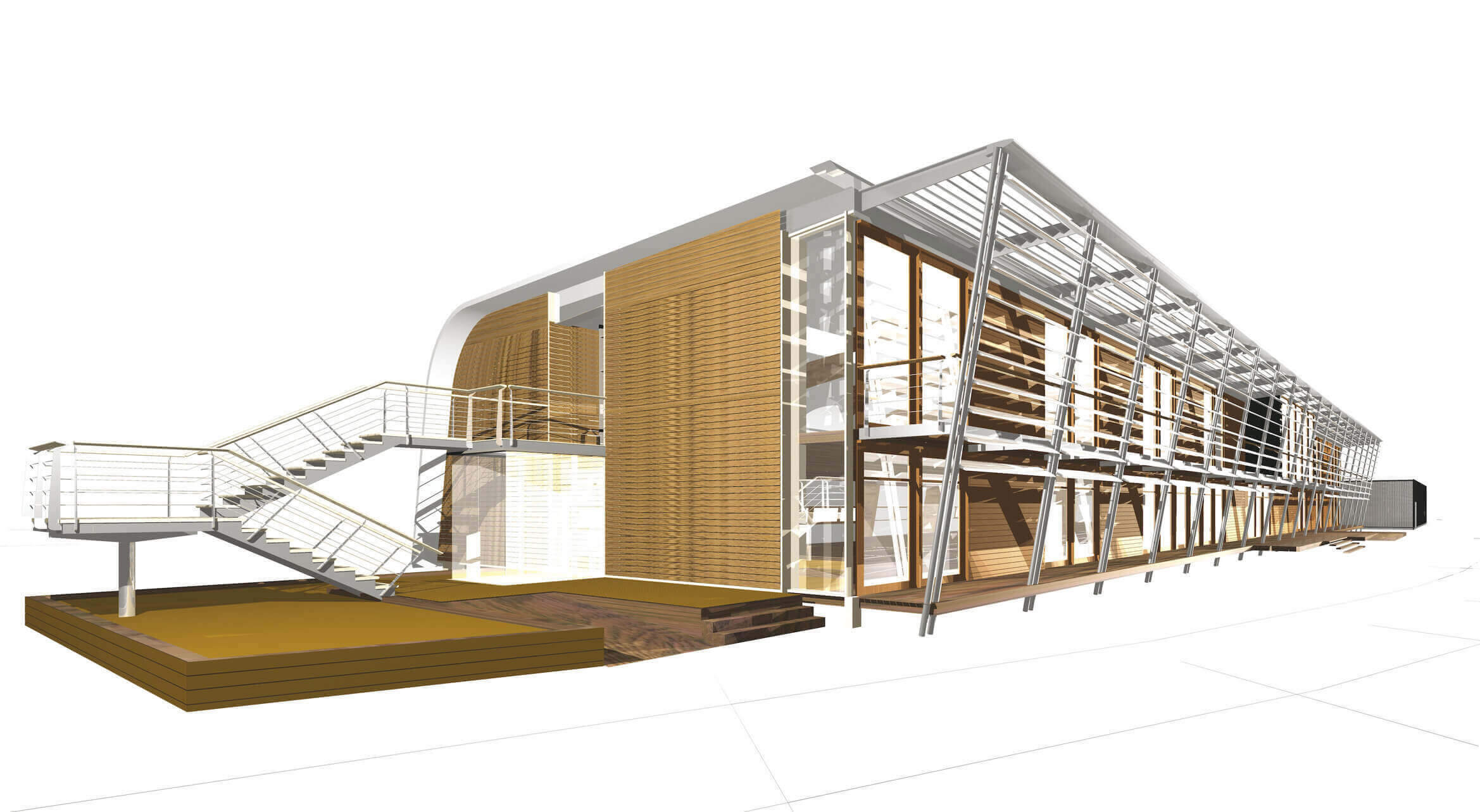

It is the practice's first building built to have an entirely PVC-free specification and uses its own environmental management system. The concept is to provide a highly insulated, lightweight timber box wrapped inside a breathable metal skin, with both skin and box punctured by a vertical light shaft.

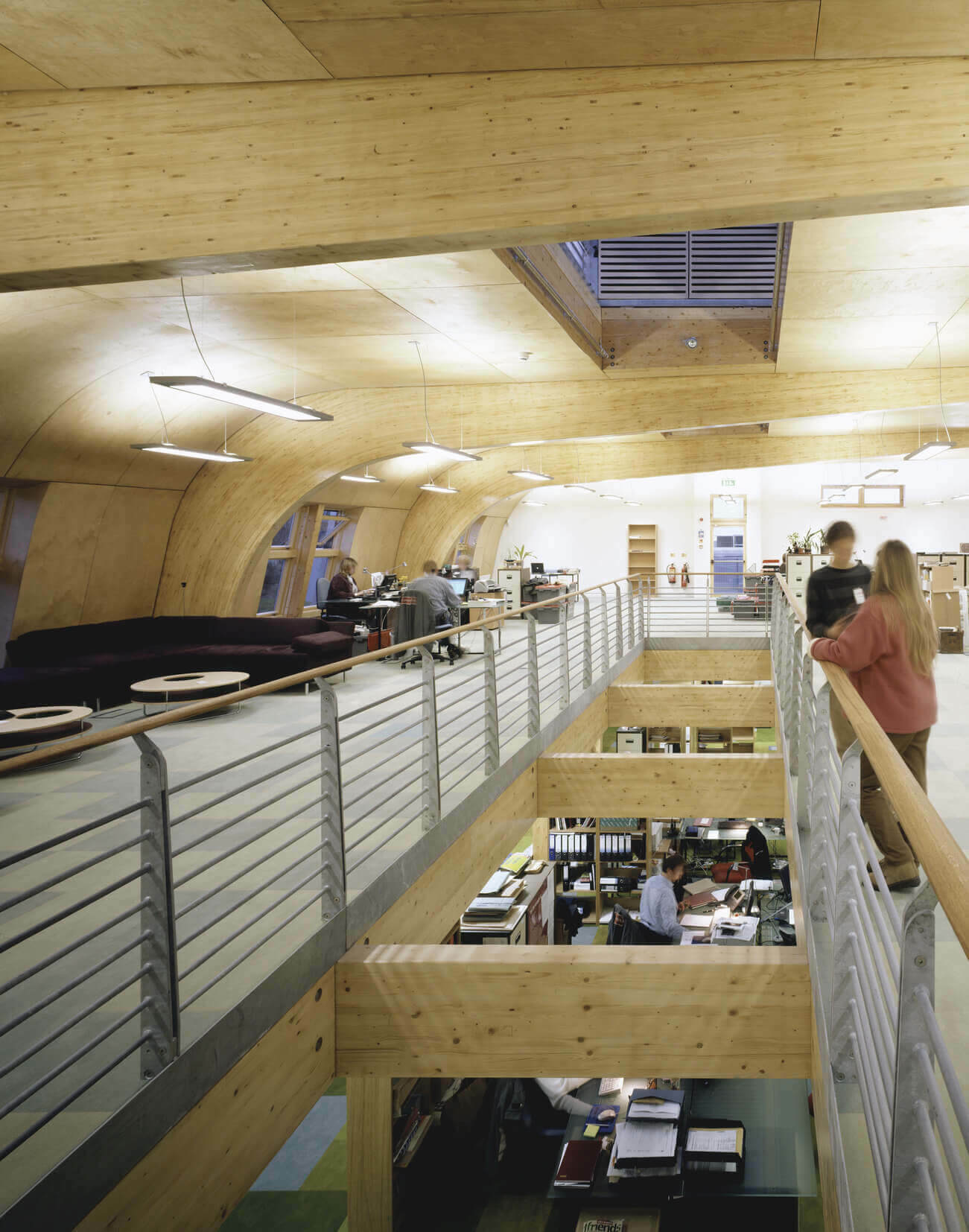

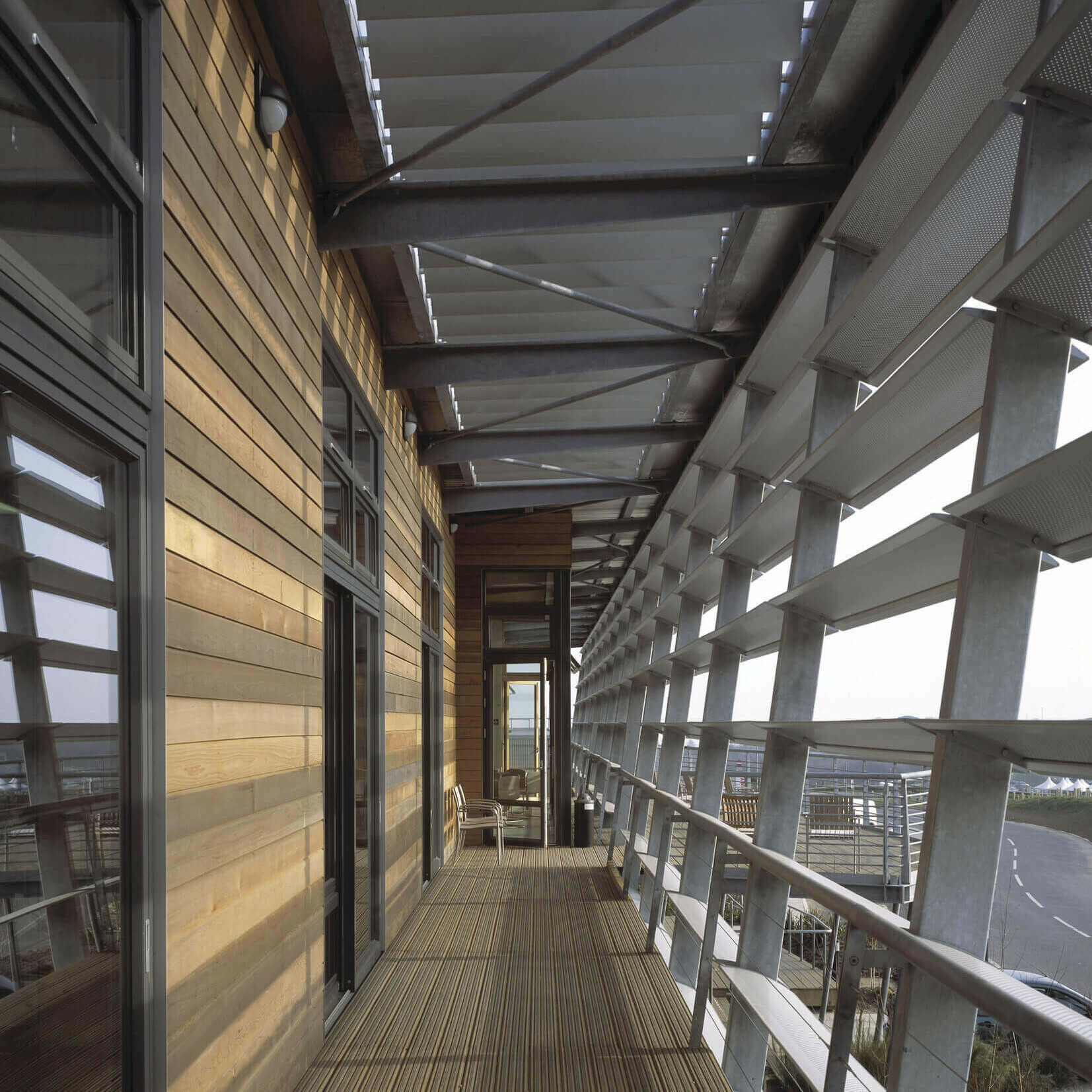

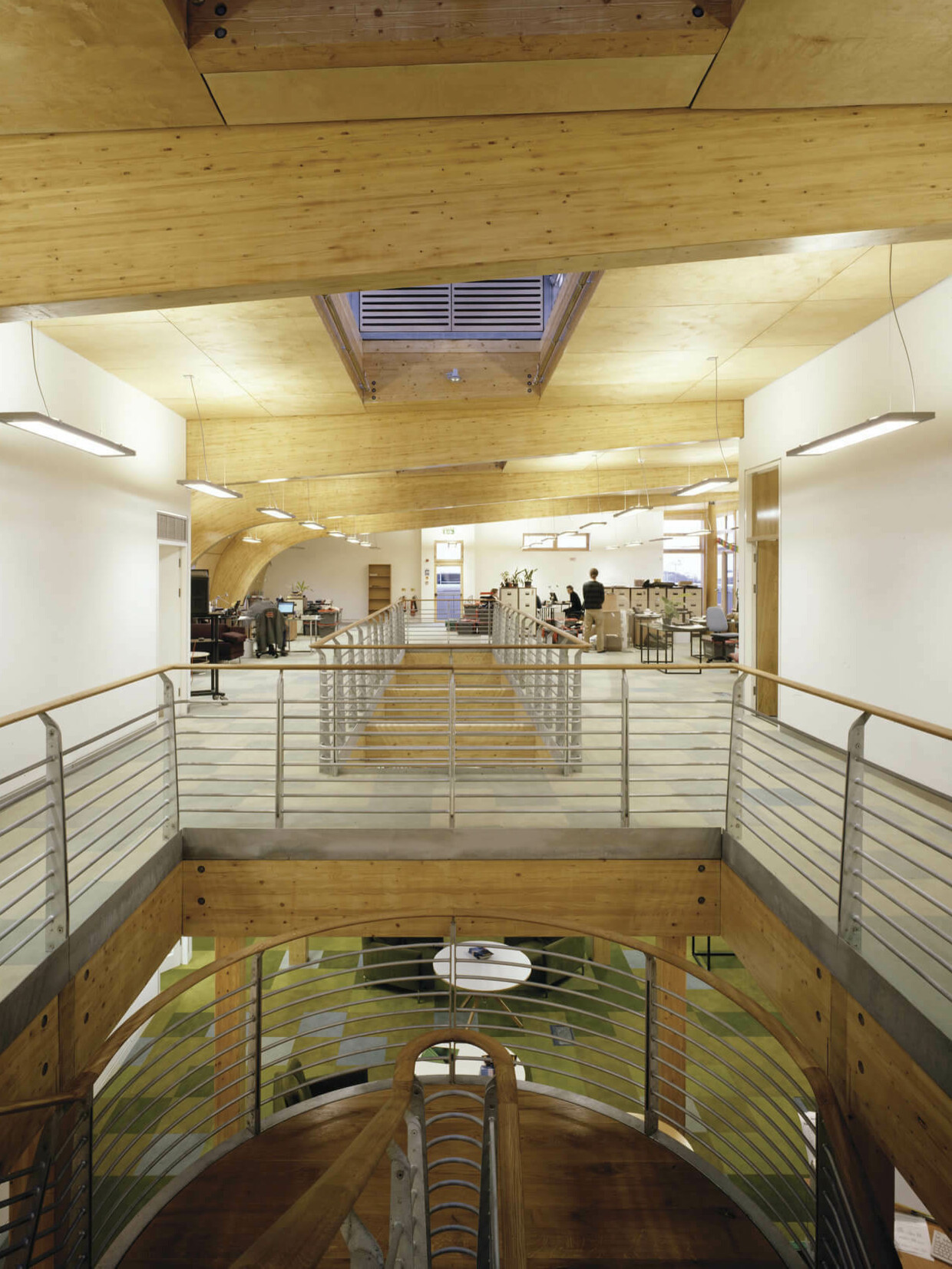

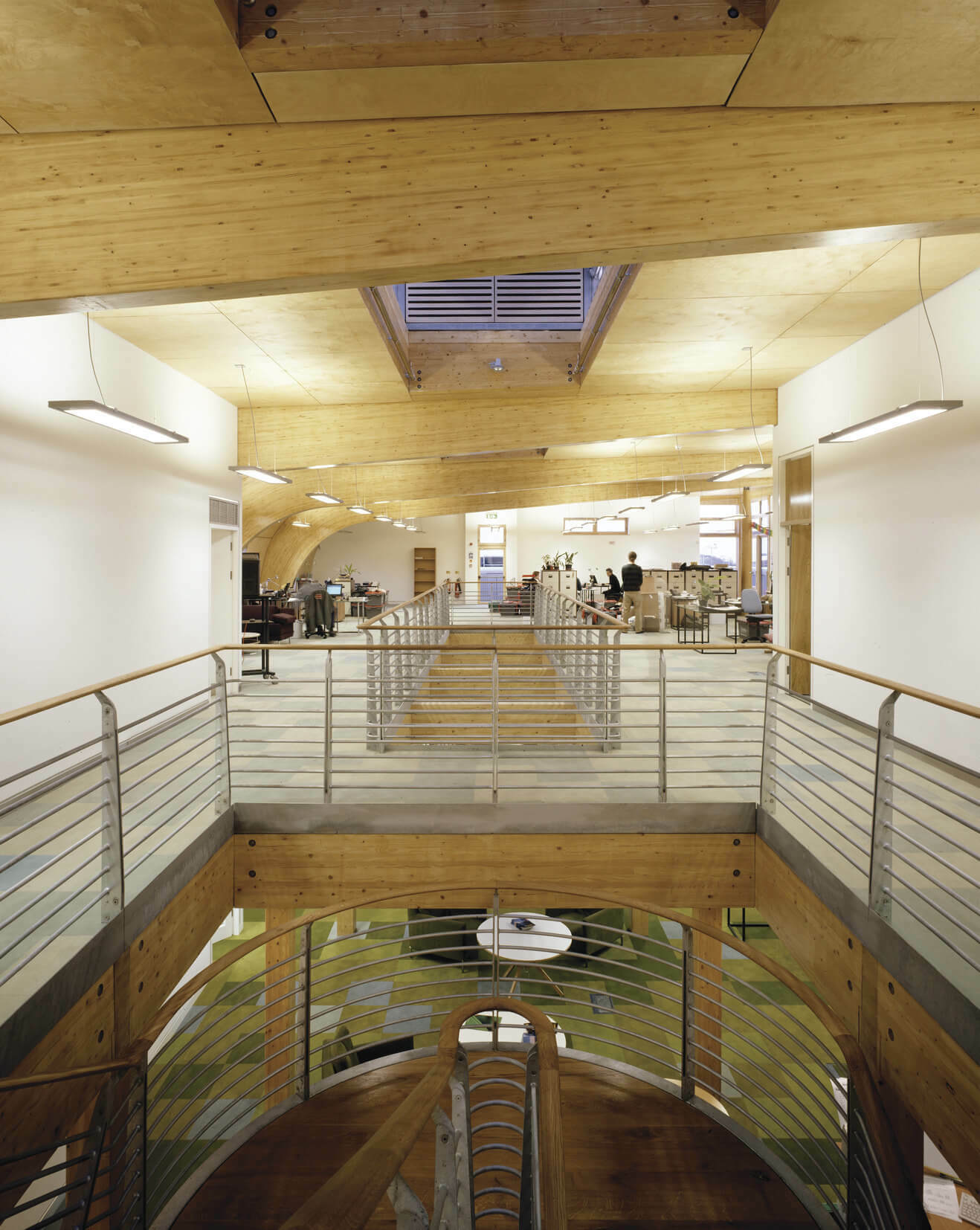

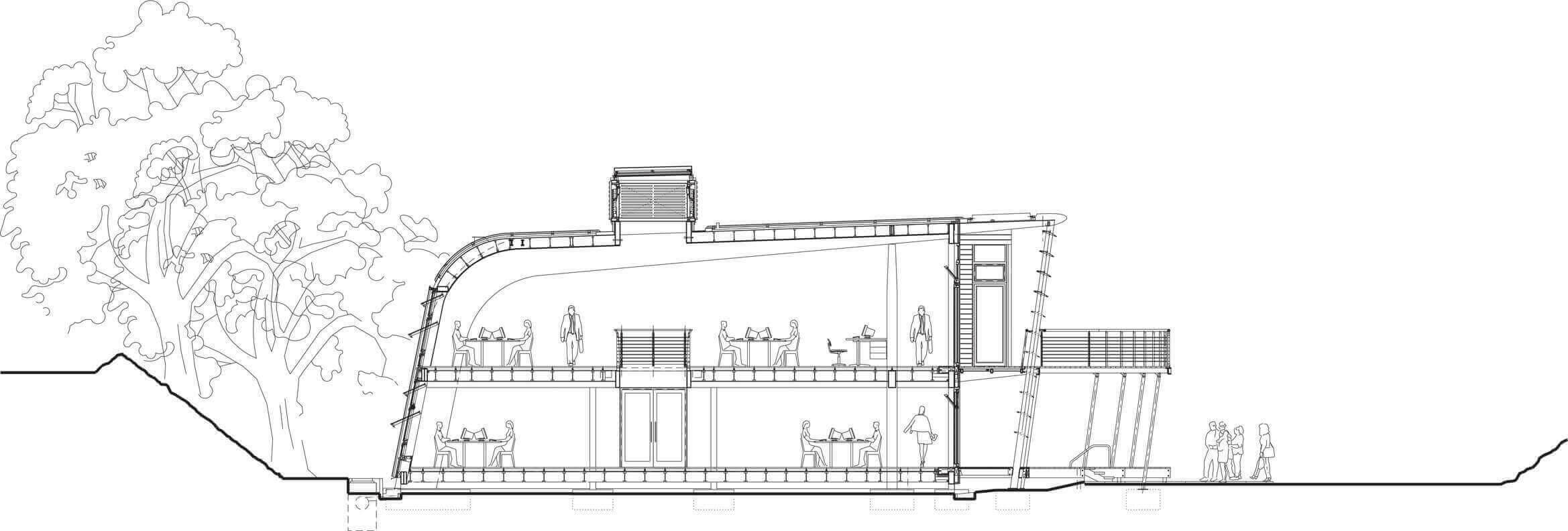

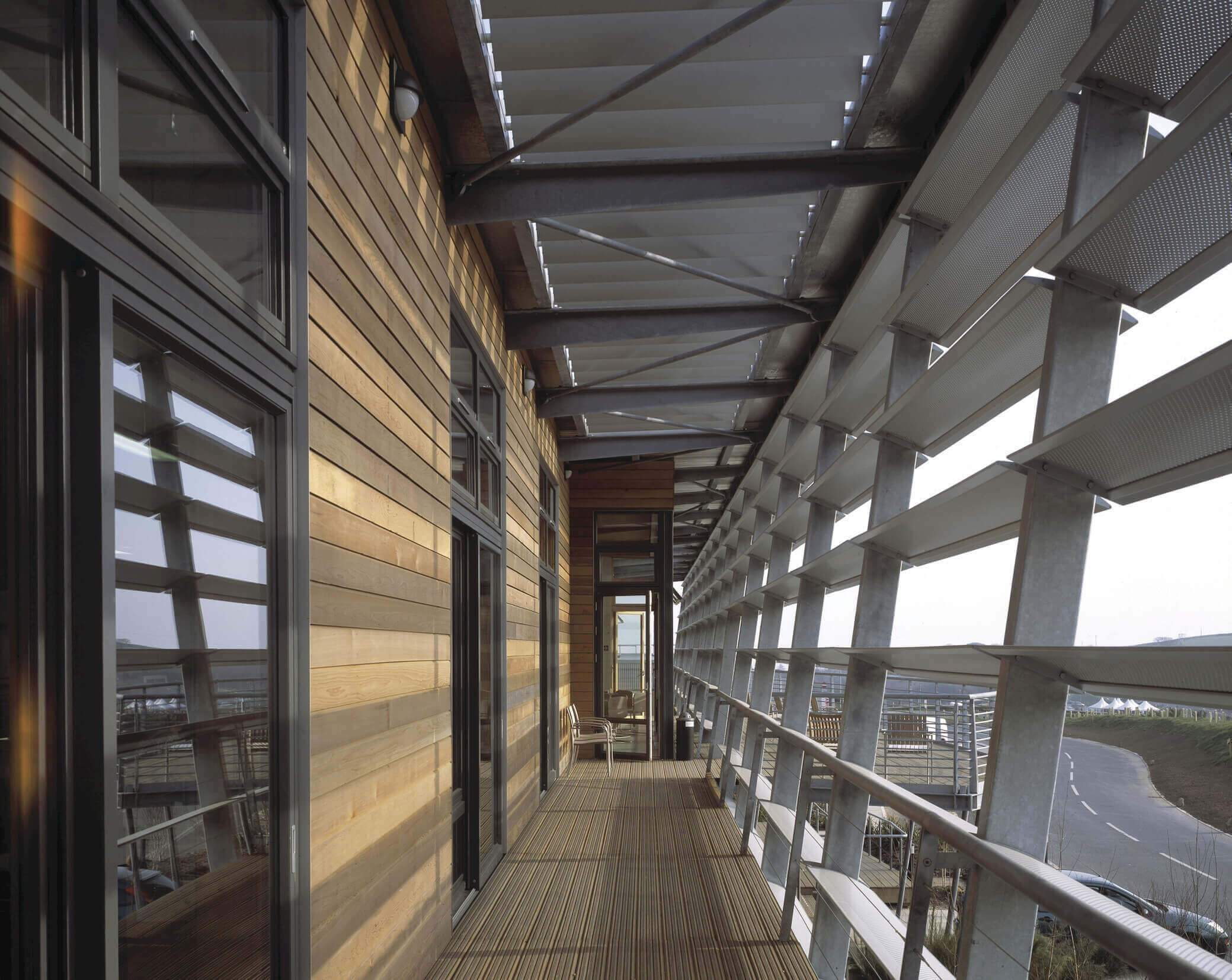

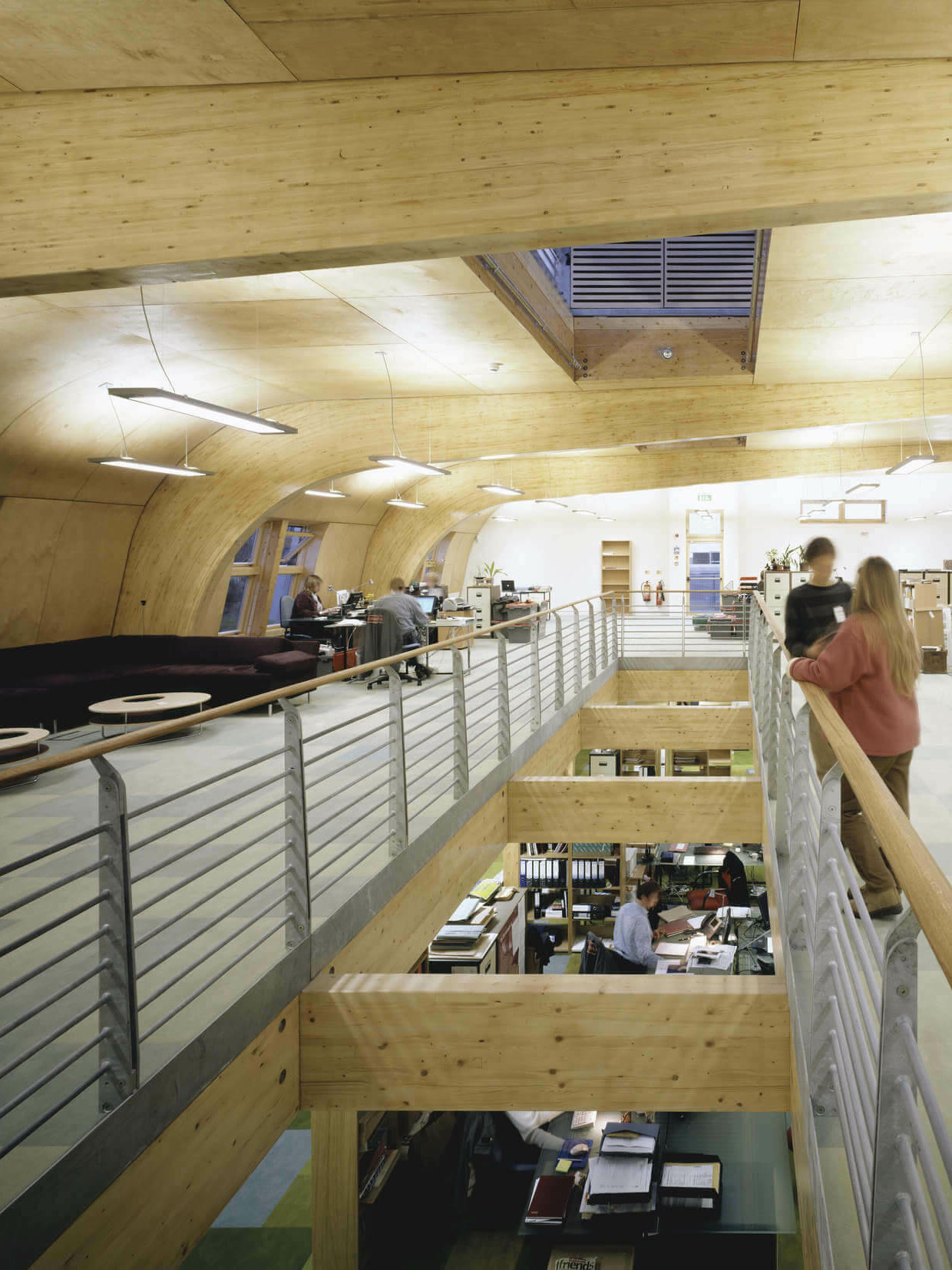

Laid out over two floors, it follows a 6 x 14 m primary grid. Each floor is arranged around a central staircase and is largely open plan. There are timber-decked external terraces at ground and first-floor level and a projecting curved balcony extends beyond the building envelope.

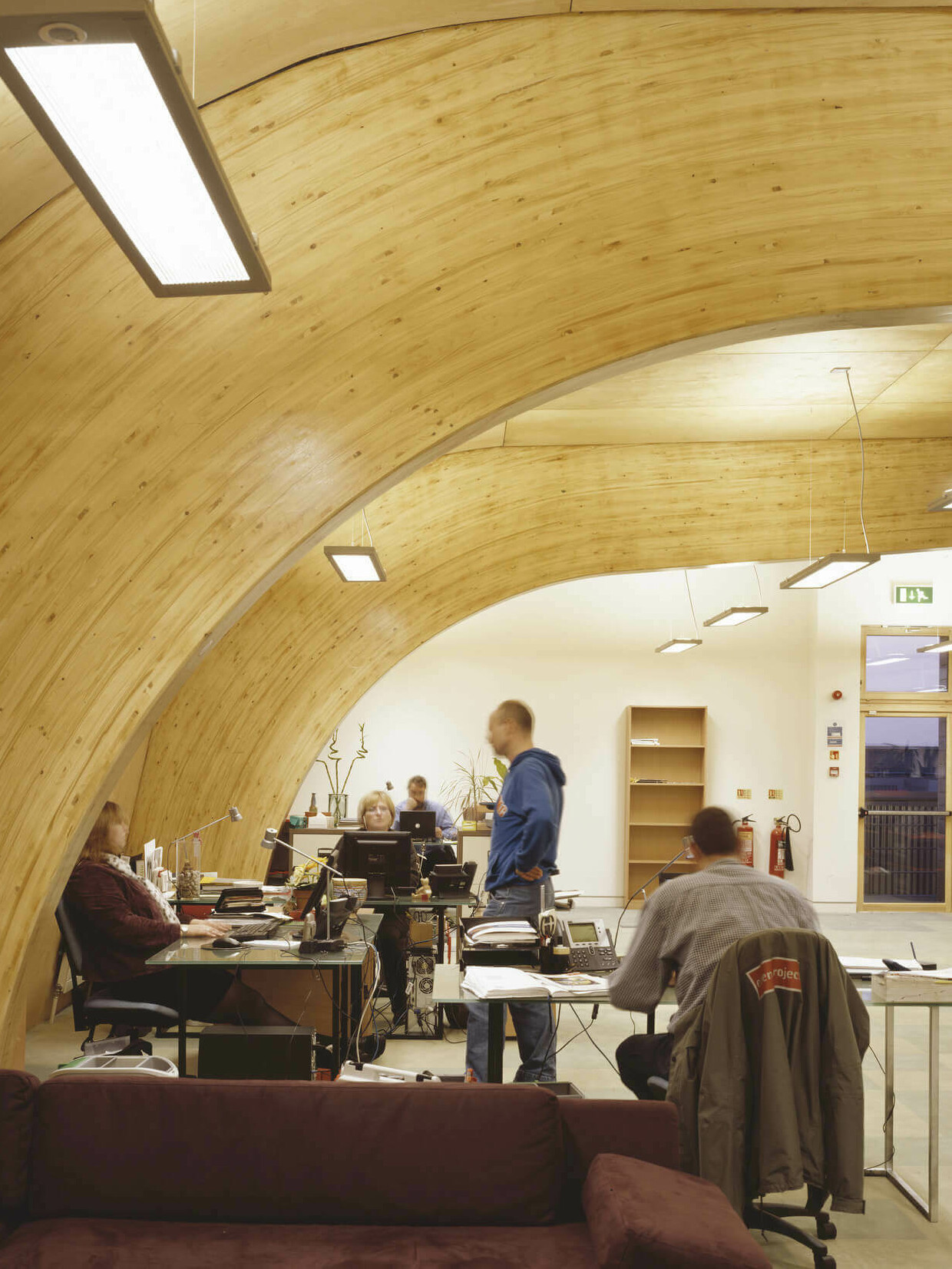

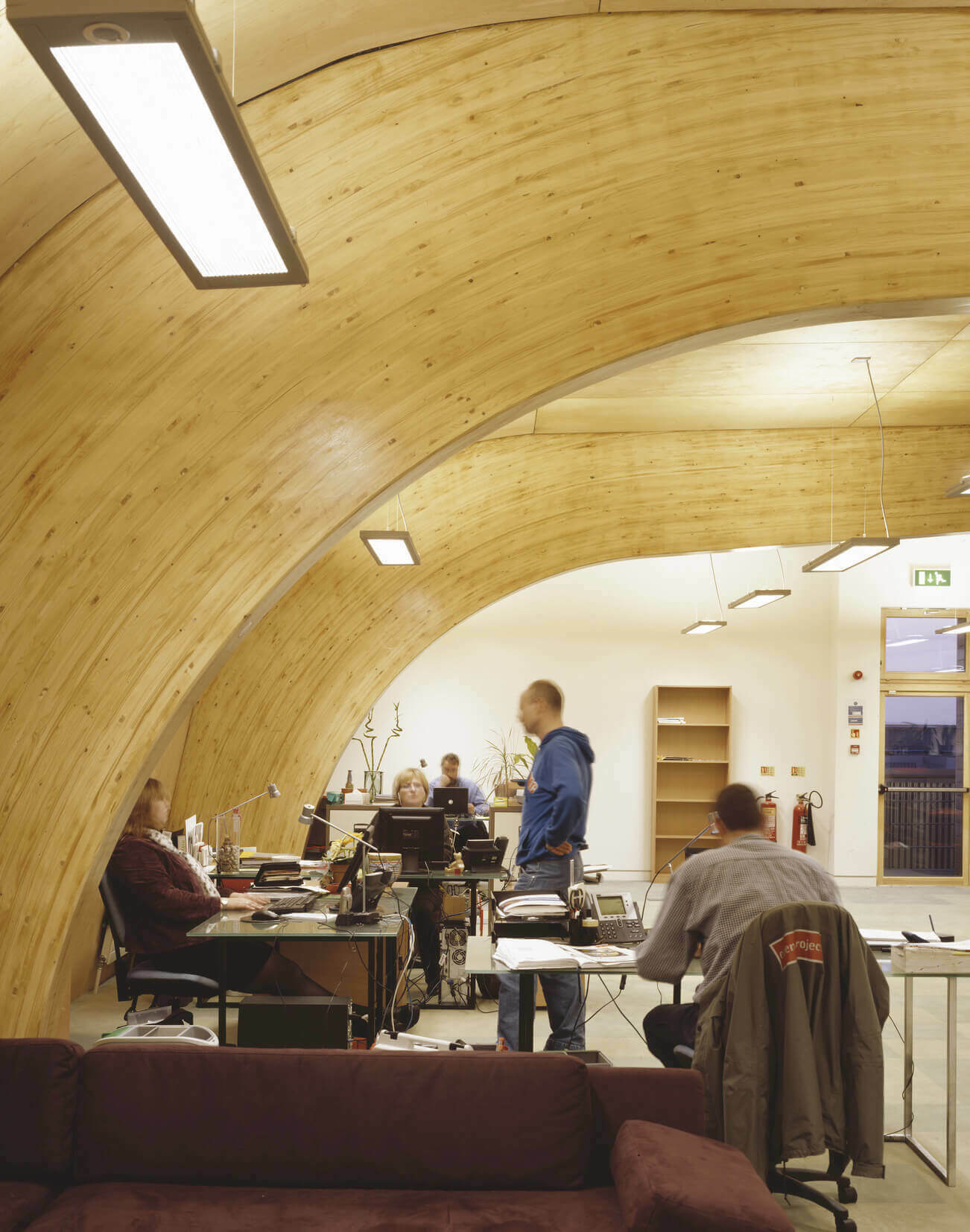

The structure comprises a series of ten propped softwood glulam beams. Instead of the traditional flat floor slab, the building is raised off the ground, supported on slender, timber columns bolted to concrete pads.
↗
↗
↗
↗
↗
↗

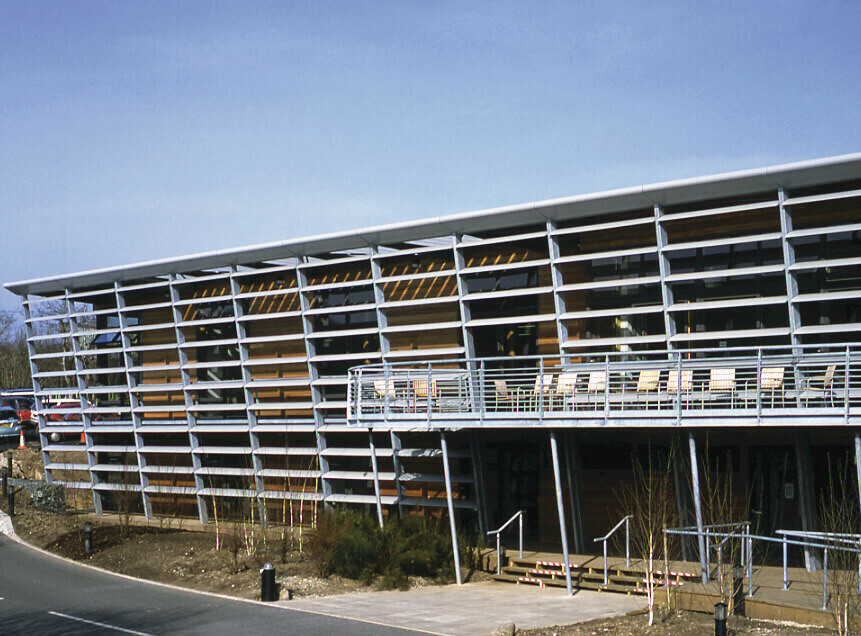

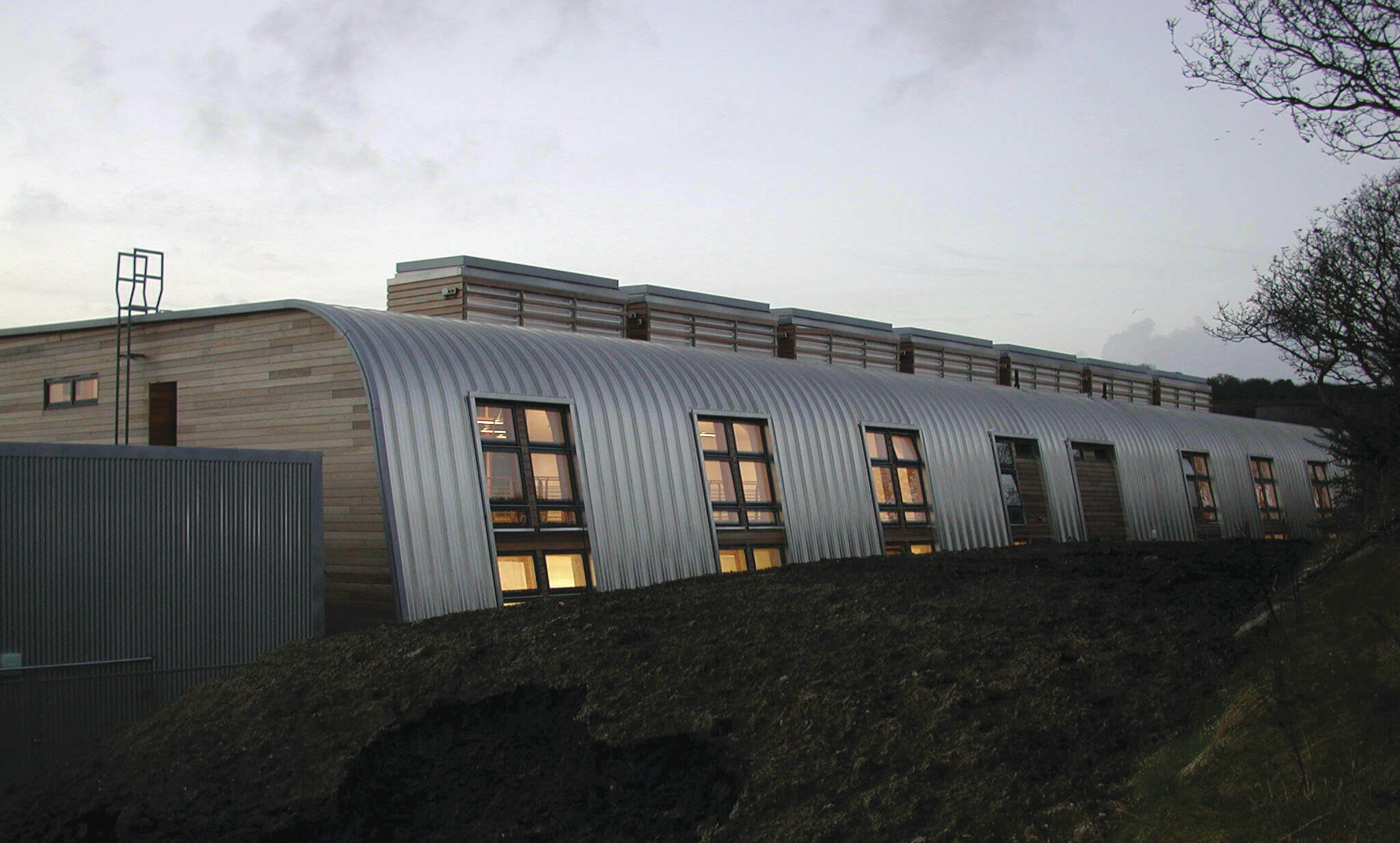

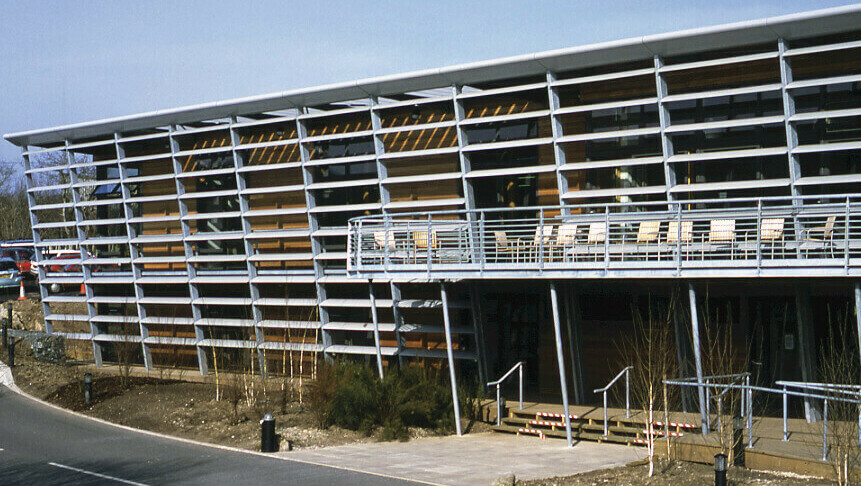

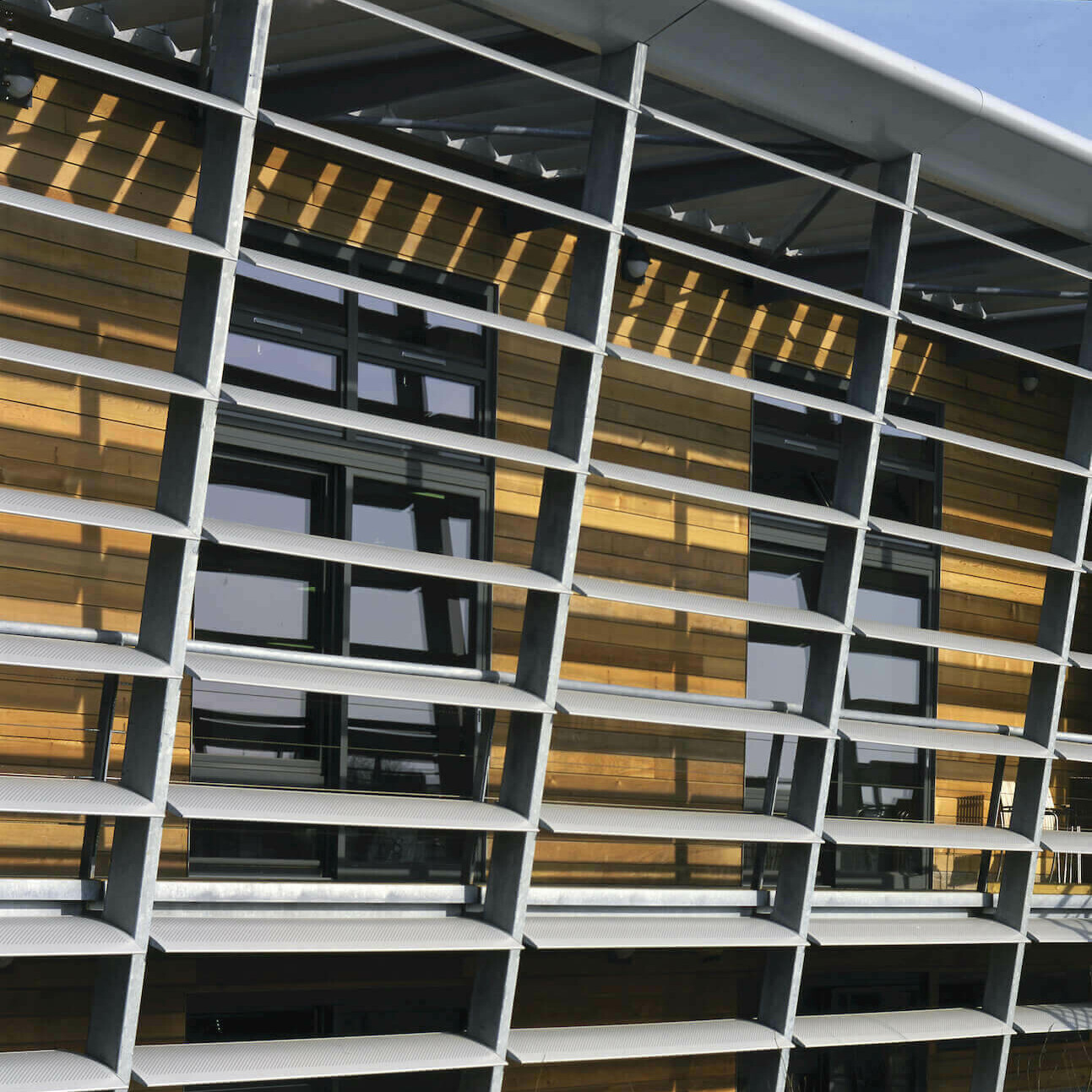

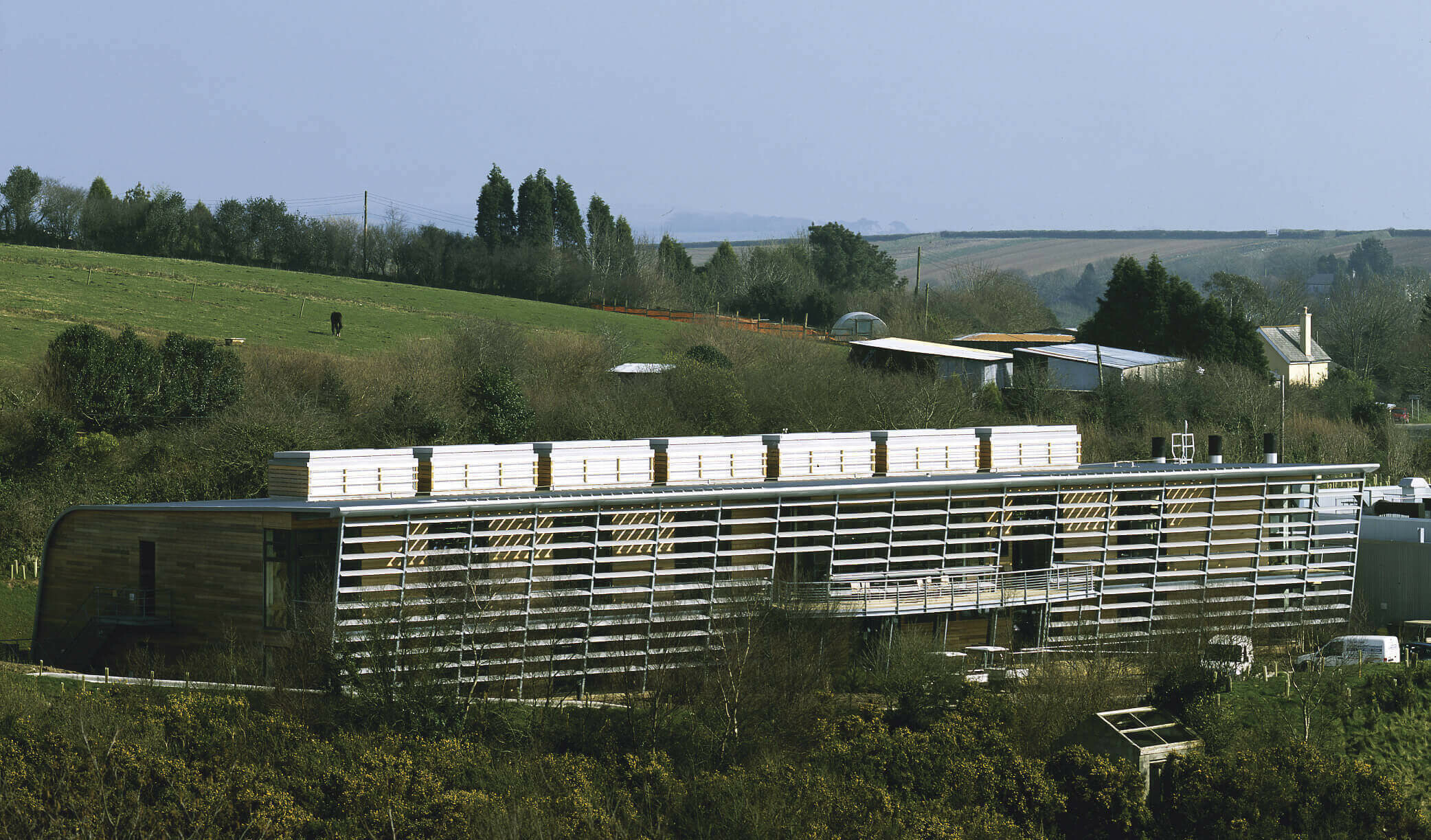

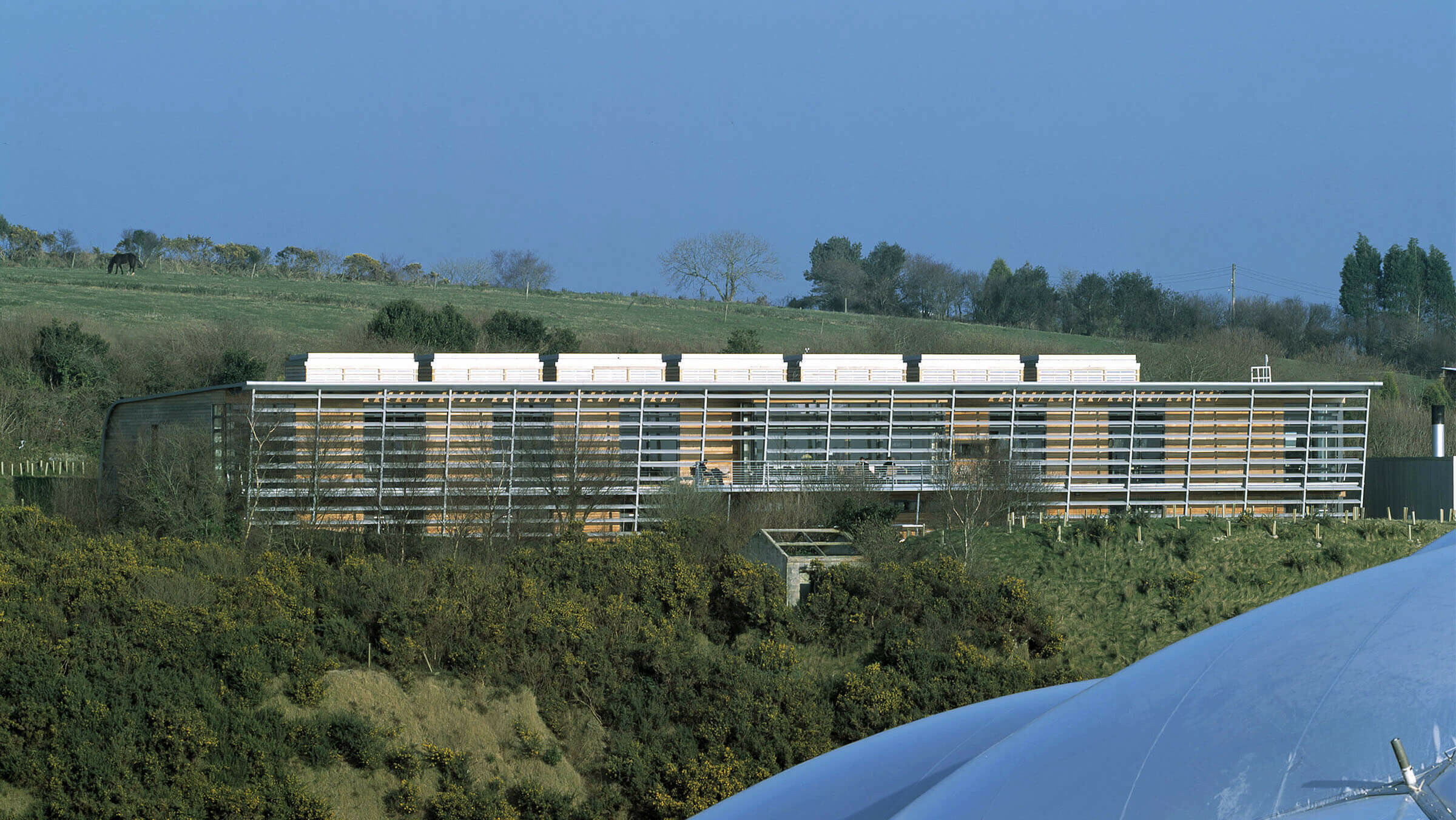

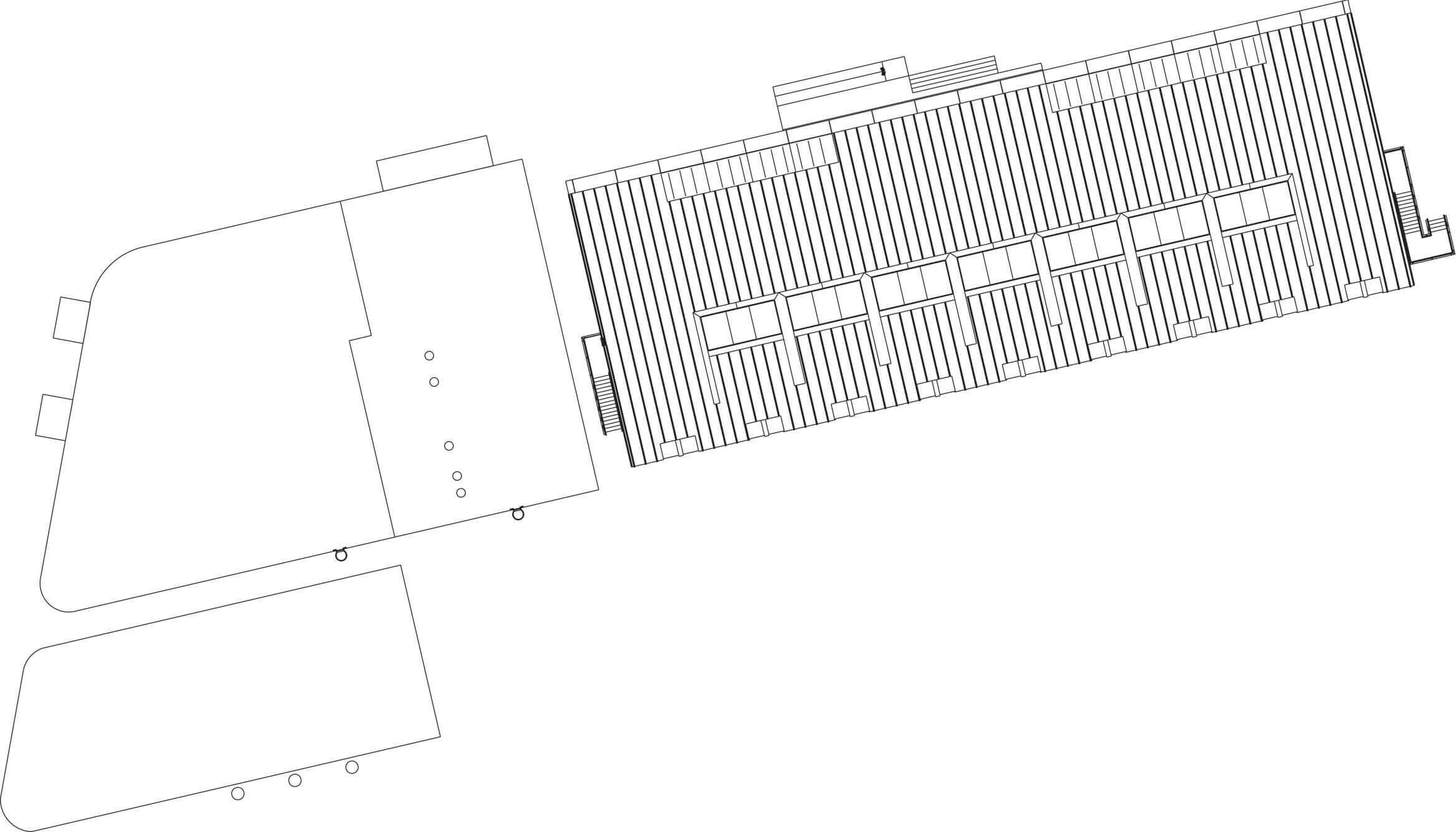

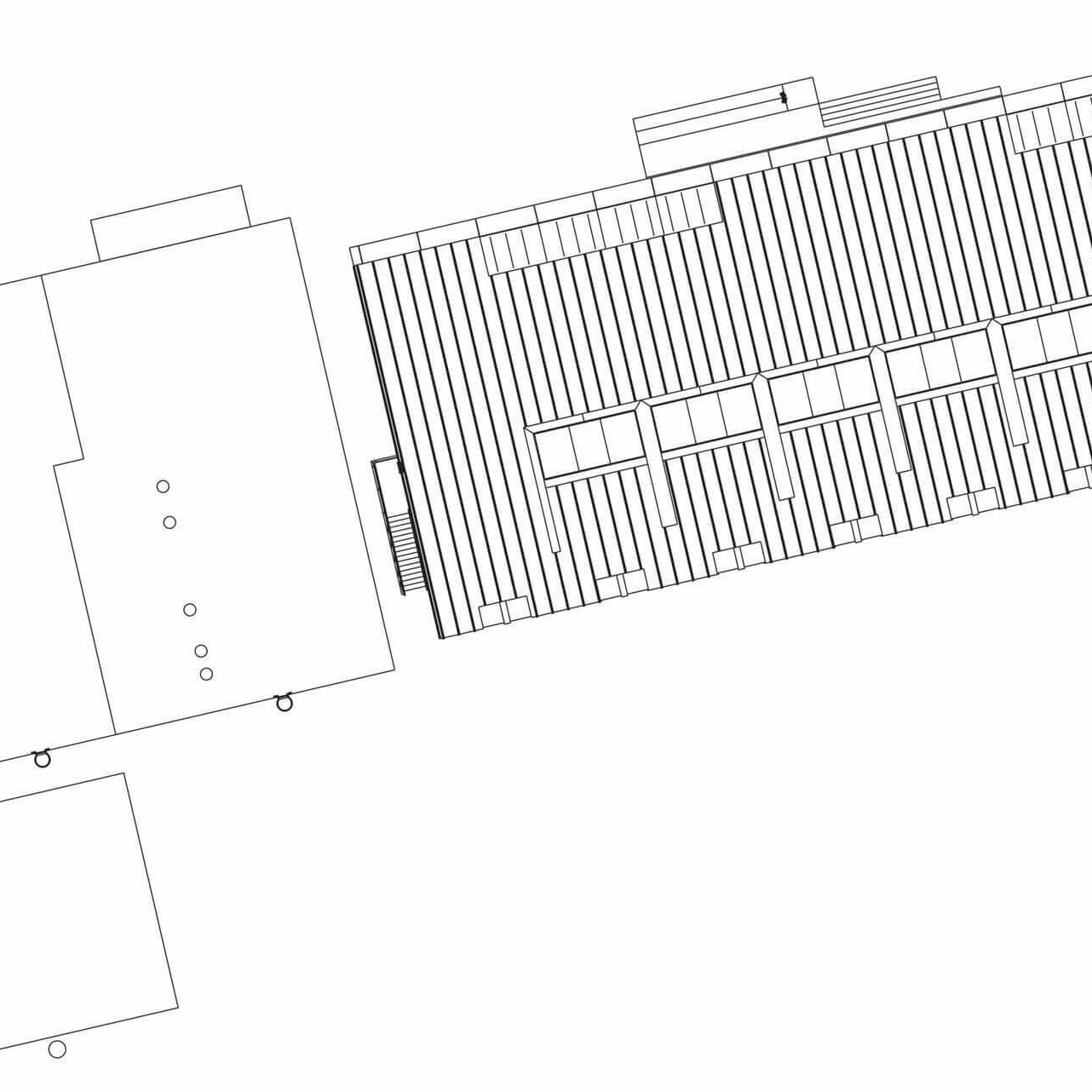

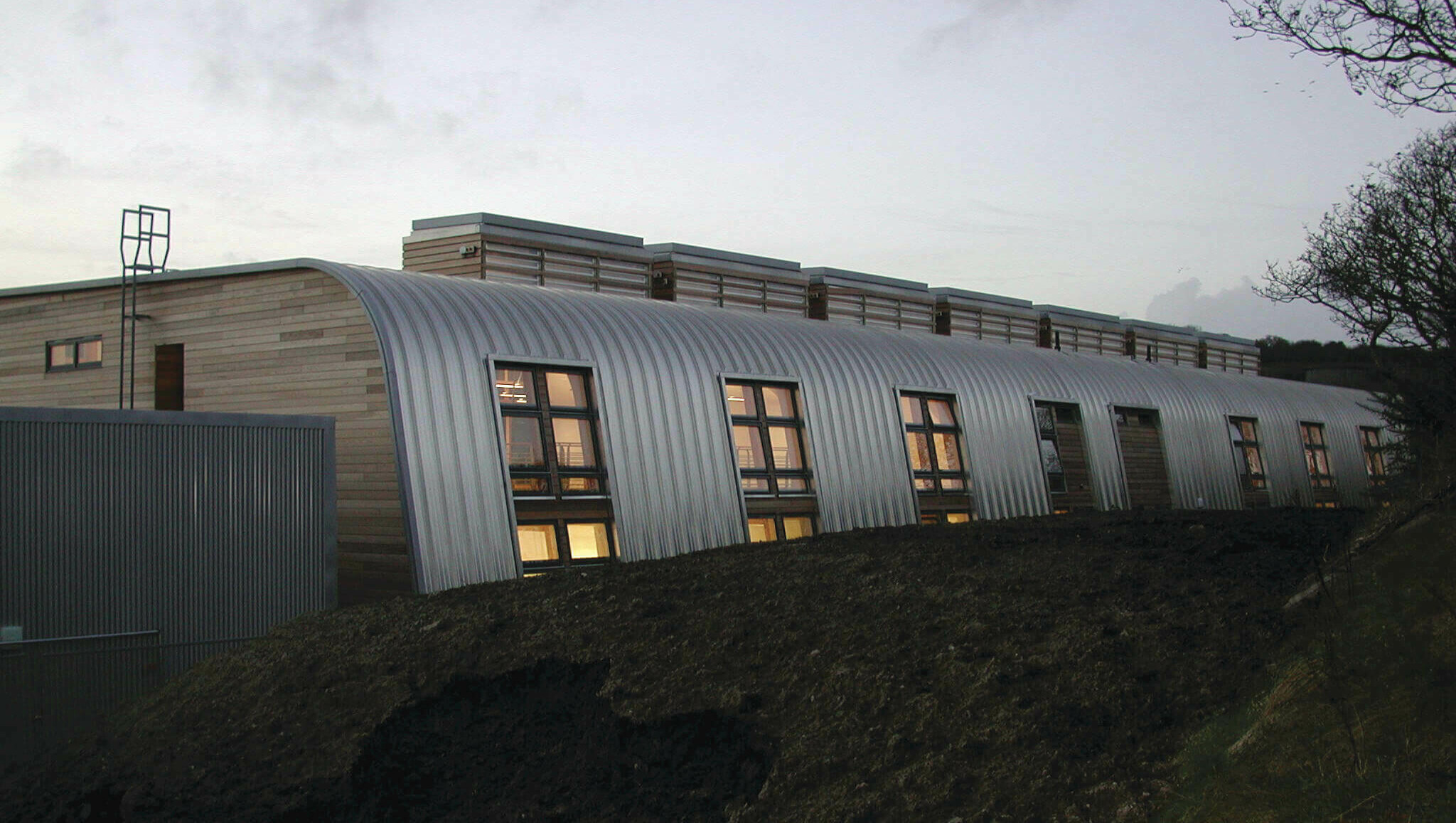

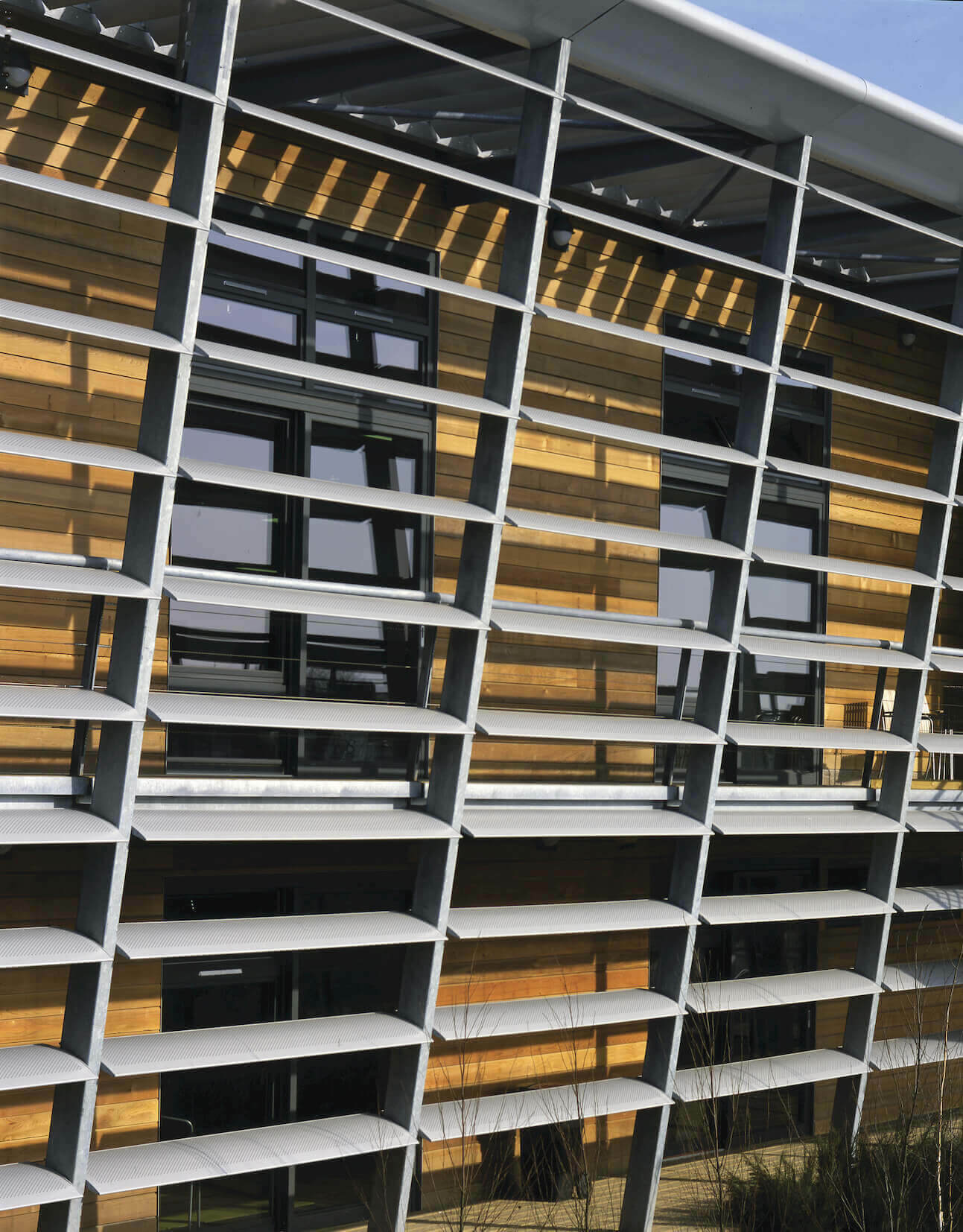

The roof is clad using an aluminium standing-seam system, and curves downwards to the east, forming a canopy supporting the horizontal louvres. Within the building, additional training rooms and a seminar area allow the space to be flexible dependent on the functions taking place in the building at any moment.
↗
↗
↗
↗
Location
Cornwall, UK
Project Type
Workplace →
Client
Eden Project Limited
Area
1,800 sq m
Status
Complete
Year
2002
